2023 Canton Fair Exhibition Tent

О проекте

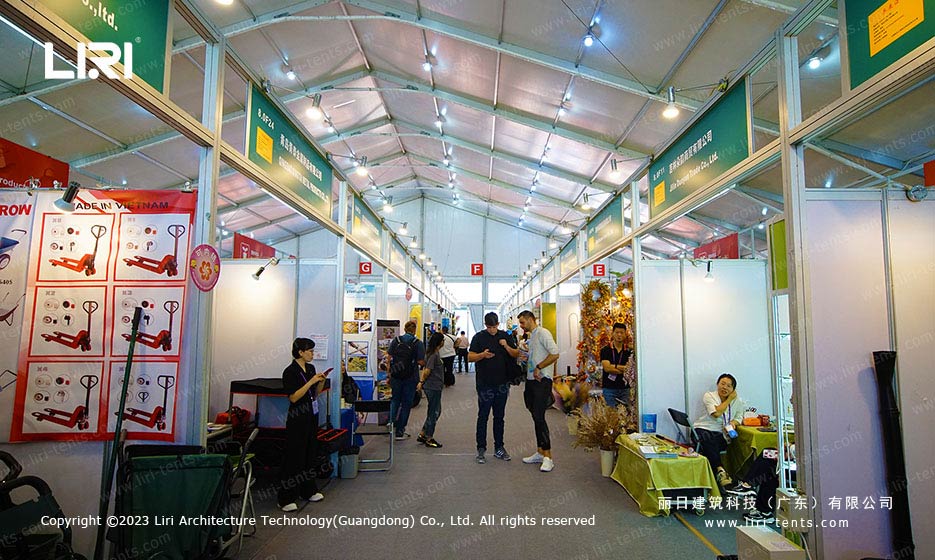

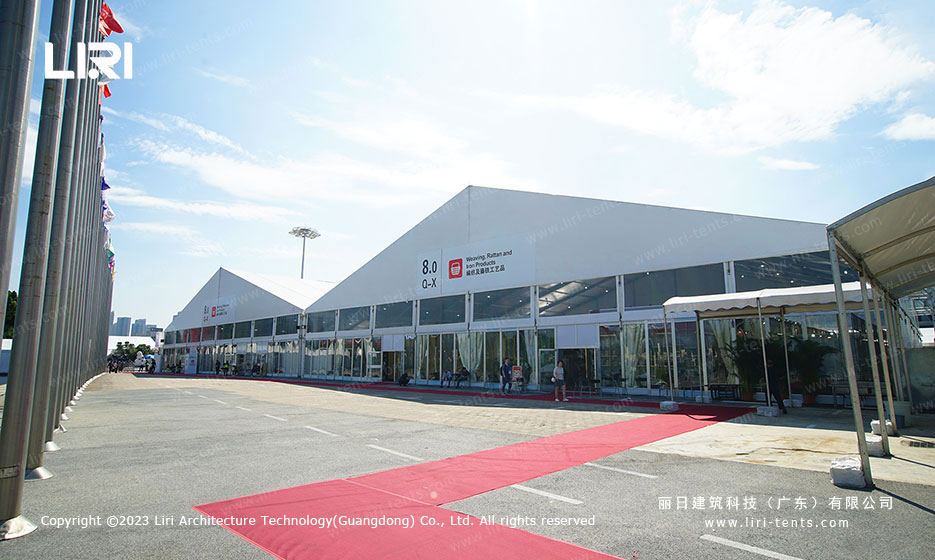

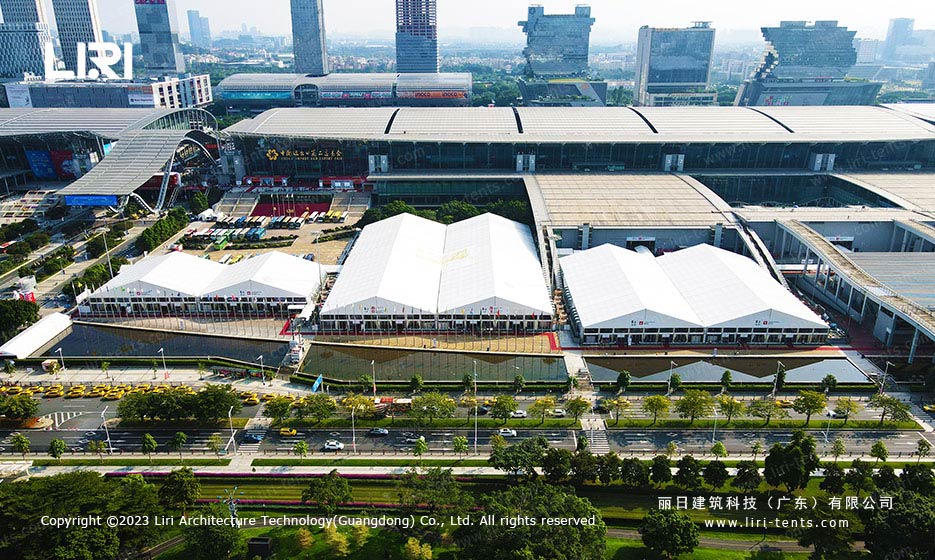

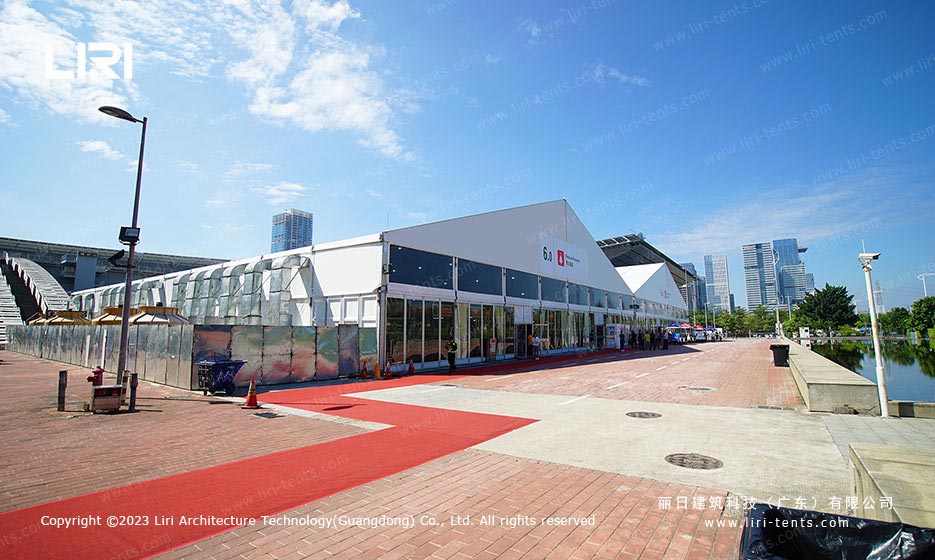

Liri Architecture Technology provided nearly 70,000 square meters of exhibition tents for the 134th Canton Fair recently and cooperated with Canton Fair for 22 years from 2001-2023. We provided different widths of aluminum and PVC clear span tents such as 3m, 6m, 8m, 9m, 10m, 12m, 15m, 20m, 30m, 40m width, used for Exhibition Halls, Security Check Points, Aisle, Lounges, Service Points, Coffee Points, Certificate Processing Centers and so on. In order to provide better tent service experience, we offered the advertising LOGO design for Canton Fair and painted on the roof, the tents are equipped with wooden floors, carpets, air conditioning, and lighting facilities to make the indoor environment more comfortable.

In the past 20 years, Liri had already served large events and exhibitions many times the domestic and abroad. We establish a good corporation relationship with the 2022 Beijing Winter Olympics, the 19th Hangzhou Asian Games, the Chengdu 2021 FISU World University Games, the China International Aviation & Aerospace Exhibition, the China Open, the USA International Mechanical Engineering Congress & Exposition, the Formula 1, got rich experience in various scale events and exhibitions.

The most important is Liri always focuses on independent research and innovation, we obtained hundreds of “design patents” and “invention patents”, and tent products are exported to over 120 countries and regions.

Exhibition Tent Series Specifications
Ширина пролётаВысота карнизаВысота гребняШаг секцийОсновной профиль
40 м5 м11,5 м5 м400 × 120 × 6/7 мм (4-канальный)
50 м5 м13 м5 м400 × 120 × 6/7 мм (4-канальный)
55 м5 м14 м5 м400 × 120 × 6/7 мм (4-канальный)
60 м5 м14,6 м5 м400 × 120 × 6/7 мм (4-канальный)
Характеристики

Профили каркаса: высокопрочный экструдированный алюминий 6061/T6 (15HW)

Тканевое покрытие: высококачественный полиэфирный текстиль с двойным ПВХ-покрытием; водонепроницаемость 100%; огнестойкость в соответствии со стандартами DIN 4102 B1, M2, CFM; устойчивость к УФ-излучению, разрывам, самоочищающаяся способность и т. д.

Соединители: прочная горячеоцинкованная сталь

Допустимый диапазон температур: от -30 °C до +70 °C

Ветровая нагрузка: макс. 100 км/ч

Снеговая нагрузка: 75 кг/м² (при большом уклоне крыши снег не задерживается)

Легко монтируется и демонтируется

Без внутренних опор, 100 % полезного внутреннего пространства
