Octagonal Tent

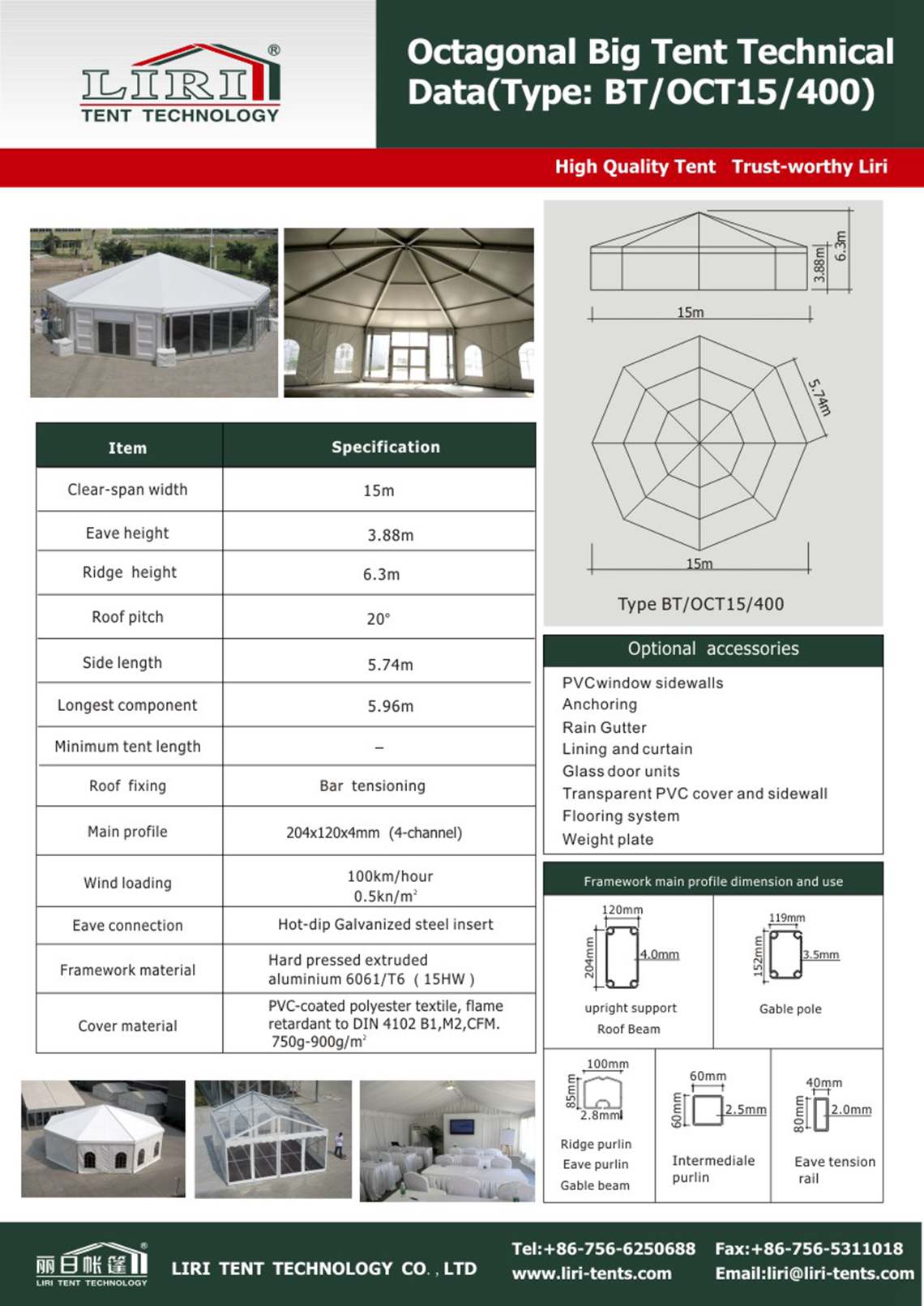

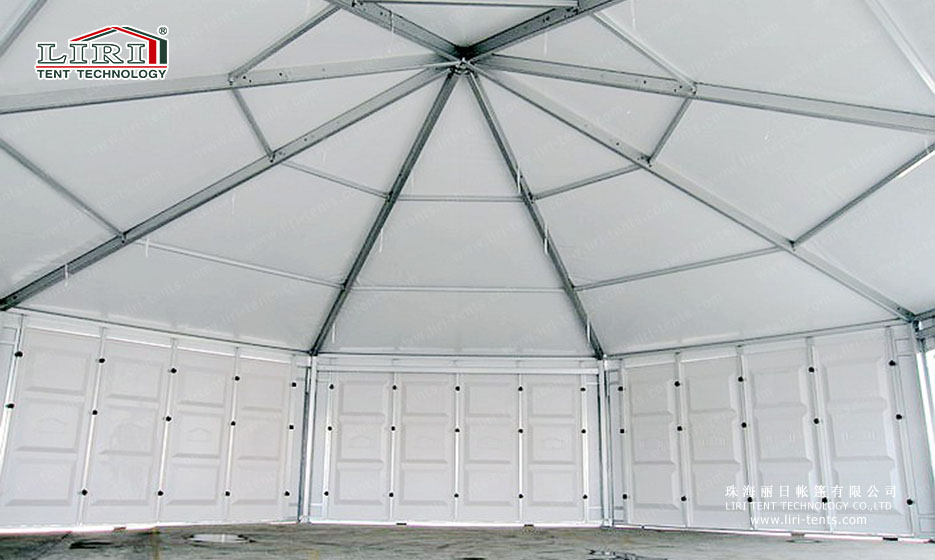

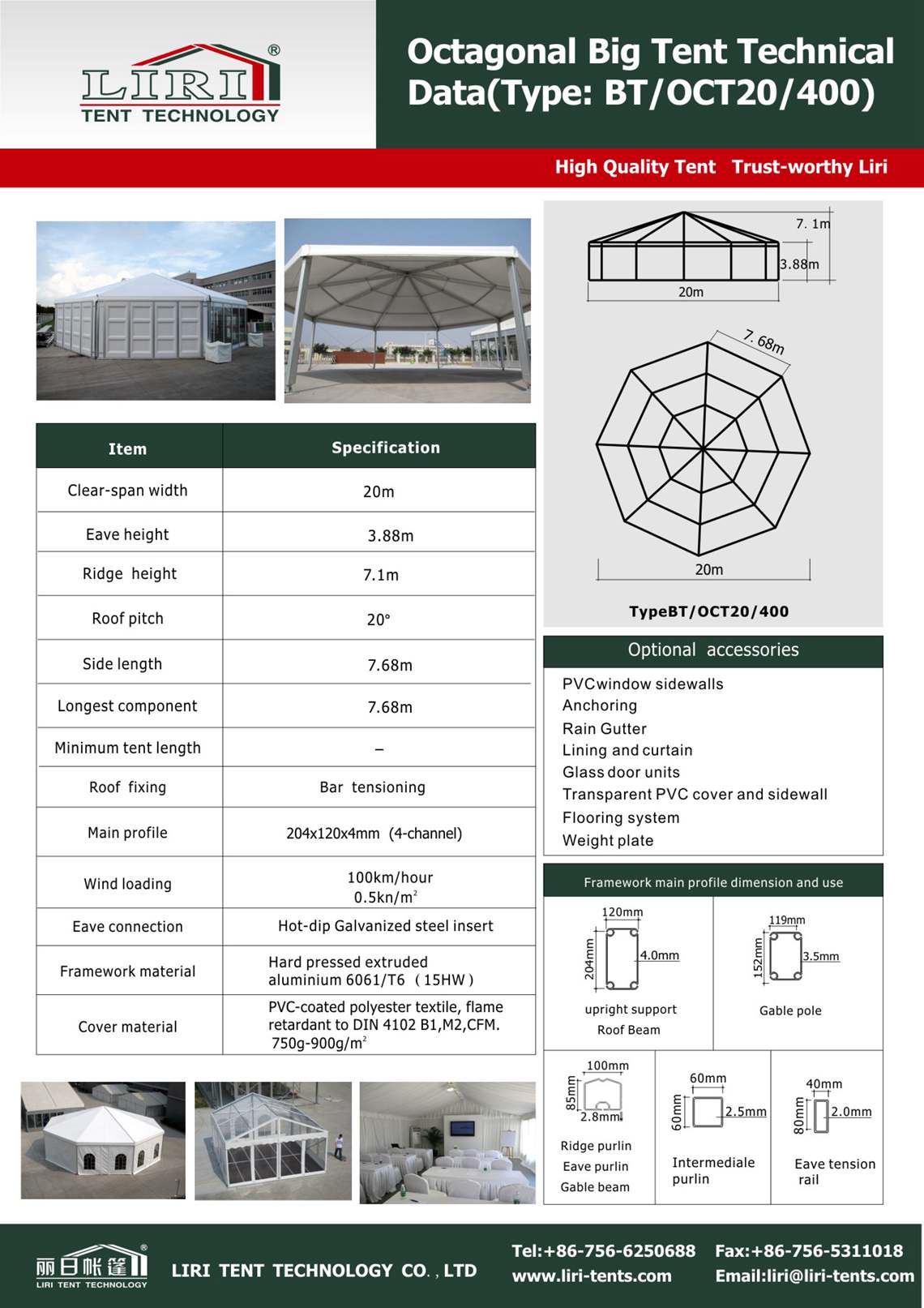

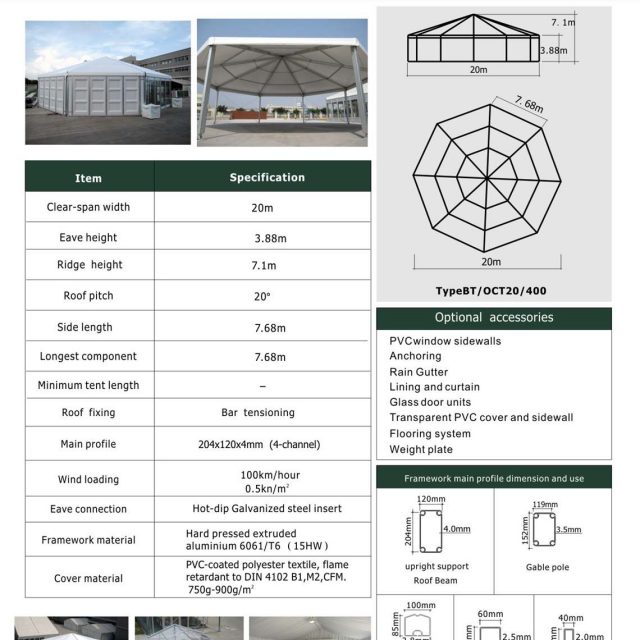

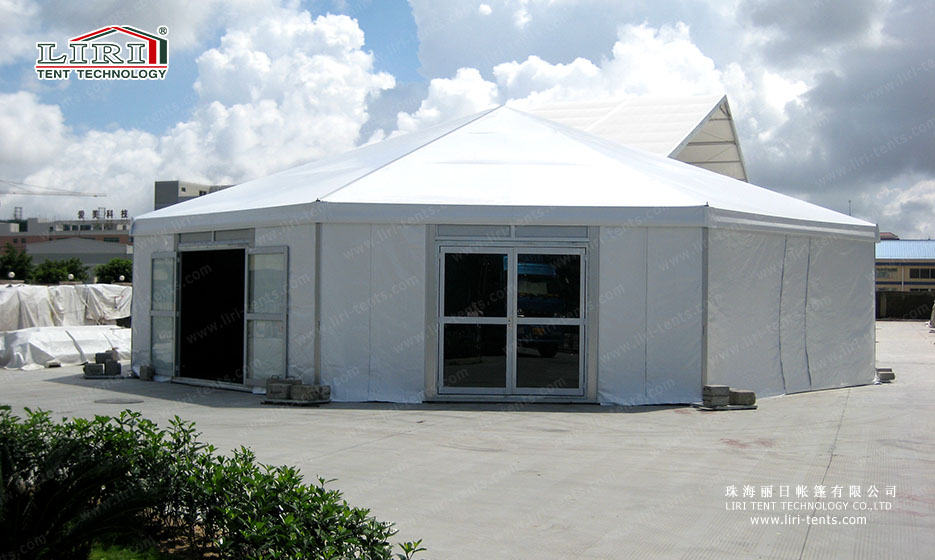

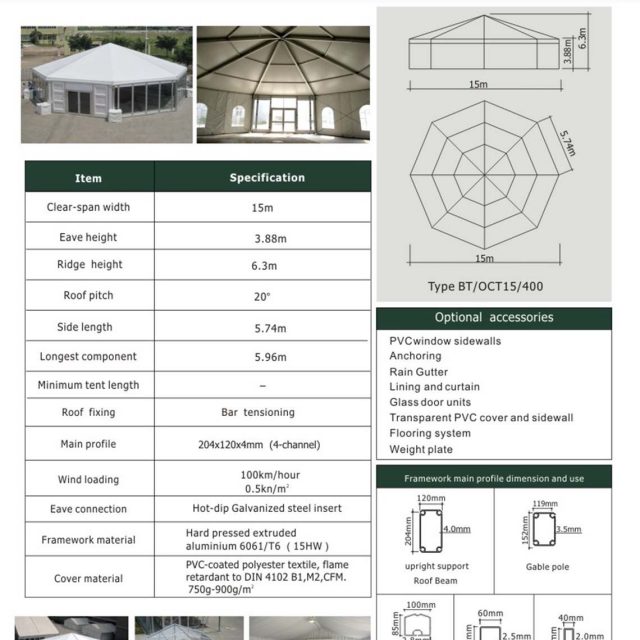

The Octagonal Tent features two kinds of roof shapes, diamond and high peak, and features structures with eave heights of 3m, 3.3m and 3.8m. There are three profiles ET-OCT (152x119x4mm), GT-OCT (166x8x3mm) and BT-OCT (204x120x4mm). The Octagonal tent frame uses hard pressed extruded aluminum alloy 6061/T6 and the roof cover uses 650-850 g/sqm and is flame retardant to DIN4102B1, M2 UV-resistant. The tent structure is in an octagon shape and it will ensure that the structure will be safe and steady so that it can achieve 100km/h wind loading (0.5KN/m2). Installation and dismantles is easy in the process and short in time. It can work either as a temporary structure or a permanent building.
