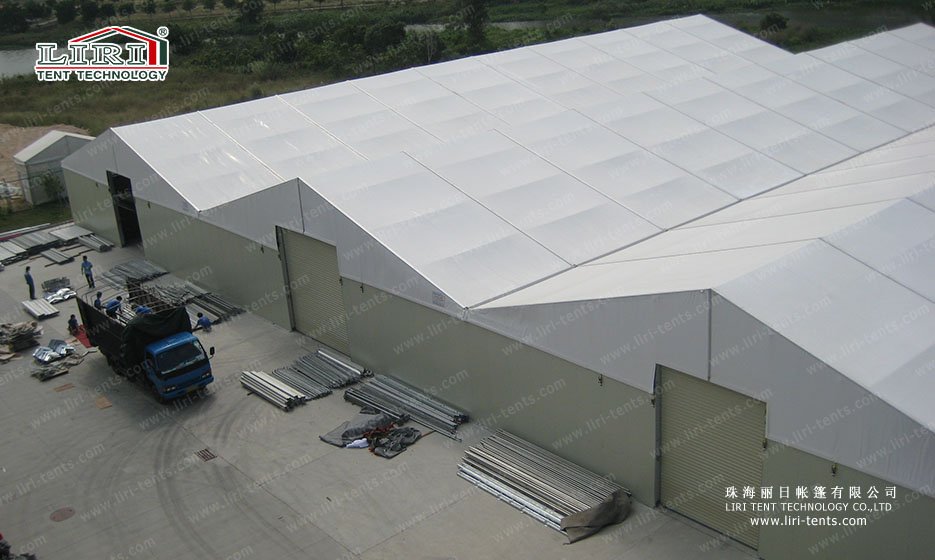

20m x 40m Clear Span Temporary Warehouse Tent​

20m-40m Temporary Warehouse Tent

О проекте

The new thermal PVC waterproof storage tent is the latest warehouse tent series from Liri Tent. Besides the performance of the original warehouse tent, the thermal insulation roof can be good for heat isolation and snow loading. This product is the latest warehouse tent in China. The benefits of using the temporary warehouse tent​ are:

  1. Short construction time: It takes 3 to 4 days to assemble a 1,000sqm temporary warehouse tent.
  2. Materials are 100% reusable when moving to another area.
  3. The wall system has options for a sandwich panel hard wall and PVC wall to satisfy different needs. The structure is able to extend to unlimited lengths.
  4. Rolling door system can be used for loading entrance for truck or forklift from four sides of the warehouse tent.
  5. Roof cover uses 650-850g/m2 coated PVC polyester textile and flame retardant to DIN 4102 BI, M2.
  6. The volume of the whole structure uses little space for storage and transportation.
  7. The thermal insulation roof tent is able to resist snow loading of three levels. These levels include 25kg,50kg, or 75kg, which can protect you from most of the weather conditions.
Industrial Tent Series Specifications
Ширина пролётаВысота карнизаВысота гребняШаг секцийОсновной профиль
5m4.2m5.05m5m204x120x4mm (4 - channel)
7.5m4.2m5.46m5m204x120x4mm (4 - channel)
10m4.2m5.84m5m204x120x4mm (4 - channel)
12m4.2m6.16m5m204x120x4mm (4 - channel)
15m5.2m7.6m5m256x121x5mm (4 - channel)
20m5.2m8.4m5m256x121x5mm (4 - channel)
25m5.2m9.2m5m300x120x5mm (4 - channel)
30m5.2m10m5m350x120x5mm (4 - channel)
Характеристики

Профили каркаса: высокопрочный экструдированный алюминий 6061/T6 (15HW)

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear-resistant, self-cleaning ability, etc

Соединители: прочная горячеоцинкованная сталь

Допустимый диапазон температур: от -30 °C до +70 °C

Ветровая нагрузка: макс. 100 км/ч

Снеговая нагрузка: 75 кг/м² (при большом уклоне крыши снег не задерживается)

Легко монтируется и демонтируется

Без внутренних опор, 100 % полезного внутреннего пространства

Похожие материалы
13 Комментарии
  1. Pls send me a quotation for a 1000 sq M tent.

  2. Kindly advise on cost for a 150 sqm.

  3. i want 1400 sq m tent quatation

  4. i wamt quot 1400sqm tent

  5. Price 1000sq m plz

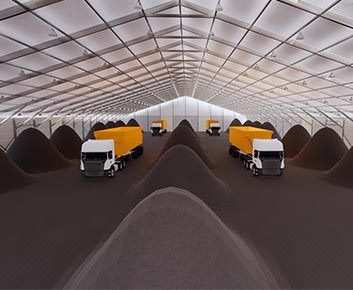

  6. Hi.. pls. Give me quotation of 20 meters (front) x 30 meters tent warehouse . (Grain storage building)
